Drilling Technologies

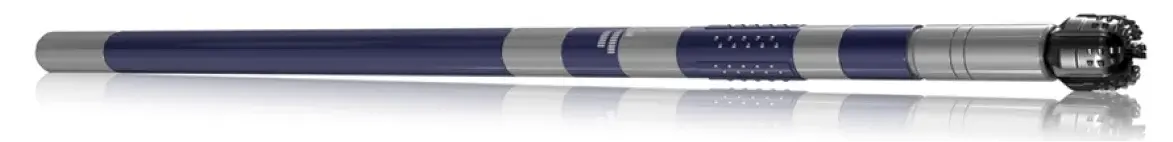

The Typhoon is designed to ream out sections of high frequency wellbore spiraling, sections of parallel misalignment, key seats, and dogleg tortuosity. The reamer does this by combining optimized placement of cutting structure and hole cleaning with a rotational reaming capability. The reamer body incorporates two sets of cutting structures into two integral blade stabilizers, one oriented in the downhole and the other oriented in the uphole direction. Polycrystalline diamond cutters (PDC) are brazed into a replaceable wedge block located in the ends of each of the stabilizer blades.

• Chevron Style Stabilizer Blades: The two integral blade stabilizers have a combination left hand/right hand blade wrapping to provide 360° support around the circumference of the reamer and provides low torque characteristics
• Cuttings Agitation and Flow Accelerator: Between the two stabilizers, an impellor and a contoured ‘bulb’ (flow accelerator) agitate cuttings on the low side of the borehole to mix the cuttings in with the drilling mud which aids in hole cleaning and cuttings mobilization
• Cutting Structure: Fixed cutters with no moving parts or bearings mean that there is less risk in having a downhole failure
• Optimized Stabilizer Blade Diameter and Length: The outer diameter of the stabilizer blade and the distance between the uphole and downhole PDC cutters was specifically chosen to match the dimensions of a packer element; demonstrating that the reamer will go through the hole proves that there will be less problems running the packer into the same hole

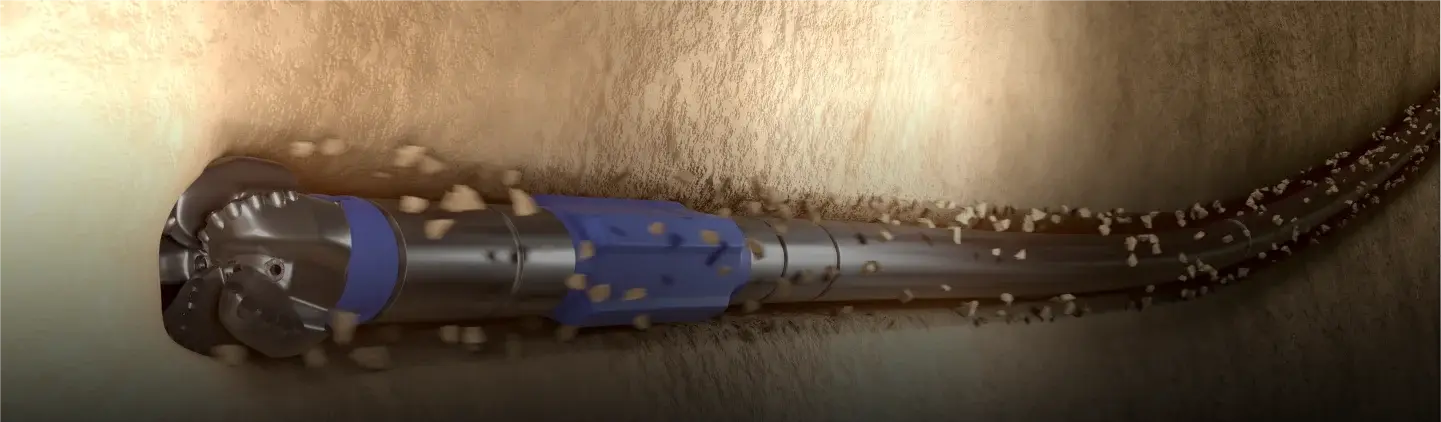

Arrival’s Landslide™ is an industry proven mud-lubricated drilling motor incorporating high-capacity thrust bearings, a newly designed high torque universal joint and robust carbide-tile radial bearings. Hundreds of Arrival’s motors have been manufactured and sold for use in Canada, the US and international markets. The motor is designed for easy service while maintaining high load bearing capacity. The Landslide can be utilized with any bottom hole assembly and stands out on high-torque and high weight-on-bit applications. In order to keep up with ever advancing drilling technology, the Arrival Landslide has integrated a new universal joint, which coupled with an improved adjustable bend assembly, includes an enlarged driveshaft providing even more torque capacity

• Hundreds of motors manufactured and sold for use in the Canada, US and international
• Millions of dollars in parts manufactured to maintain the downhole motors sold
• Proprietary Double-Shouldered connection provides increased torque capability of internal drive components
• Wide range of torques and weight-on-bit capacity
• Operates in any drilling environment with any power section
• Adjustable and fixed housing configurations available
• Shaft-saver and rotor catch devices provide enhanced peace-of-mind

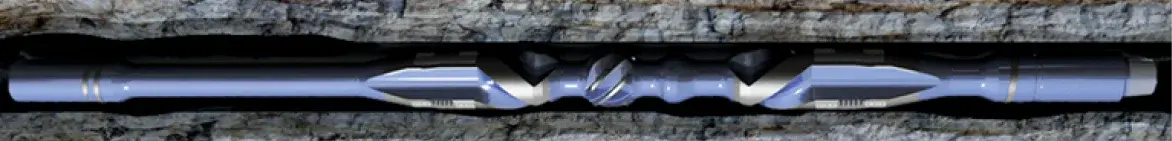

Designed for maximum performance and easy handling in horizontal or deviated wells, the Cuttings Bed Mobilizer™ is useful in reducing torque and drag problems by removing cuttings resting on the low side of the wellbore, while strategic placement of clusterite and stabilizer orientation are tailored and built into the tool to assist in reaming operations. Reduction of the ECD (equivalent circulating density) by keeping the wellbore clear of cuttings is one of the major benefits of using the Cuttings Bed Mobilizer™

• Short Overall Length: Designed for easy rig floor handling and more cost effective manufacturing and transportation
• Conventional Right-Hand Wrapped Stabilizer: Full 360° support minimizes wear to the major diameter of the tool joint and rotor blades
• Combination Left/Right-Hand Wrapped Stabilizer: Assists in hole cleaning and moving cuttings and debris during back-reaming operations.
• Clusterite Covered Leading Edges: Aggressive stabilizer edges break up large hole debris and cuttings but will not affect hole gauge
• Cuttings Agitation: Rotor blades lift cuttings off of the low side of the borehole and auger them into the mud flow

Eureka Mellon is introducing a state-of-the-art Downhole Drilling Filter in Q4 2024. This Downhole Drilling Filter Sub will safely capture and filter all junk, debris and parts in the drilling mud. The design of the filter and sub ensures that even in the event the filter is full, there is smart bypass system, that allows the flow to continue. This Downhole Drilling Filter Sub, will revolutionize the current market of downhole filters through its engineering and design, providing a complete value-added solutions to clean mud downhole.

During drilling, stickslip and shocks are the main cause behind downhole tool failures and are creating significant NPT for Operators worldwide. Eureka Mellon is currently in the process of bringing the very best anti stick-slip / anti stall technology to the drilling tool market. Our technology will be all encompassing and eradicate downhole stickslip and shocks, ensuring optimized drilling operations to reach section TD on every single section.
